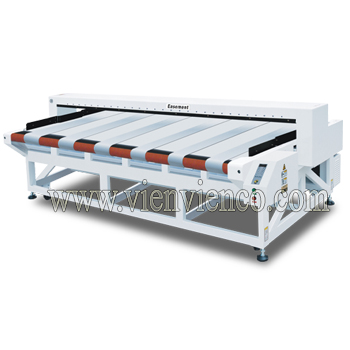

Applications of HD-2000C Wide-Width Metal Detector:
- The HD-2000C Wide-Width Metal Detector uses magnetic induction technology and is designed to detect broken needles, sewing needles, nails, iron wires, and other ferrous metal contaminants in wide-width textile materials and products.
- Applications:
- Inspection of wide-width fabrics.
- Inspection of finished and semi-finished textile products.
- Inspection of non-woven fabrics.
- Inspection of fabrics used for household and textile products.
- Detection of broken needles, sewing needles, nails, iron wires, and other ferrous metal contaminants.
- In-line inspection before packaging and shipment.
- Suitable for products with a detection width of up to 2000 mm.
Technical Specifications of HD-2000C Wide-Width Metal Detector:
- Model: HD-2000C
- Detection Method: Magnetic Induction
- Detection Width: 2000 mm
- Detection Height: 140 mm
- Detection Sensitivity: ≥ Fe Ø1.2 mm
- Alarm Method: Audible buzzer and warning light
- Sensitivity Adjustment: 10 levels (Level 1–10)
- Operating Speed: Approx. 35 m/min
- Power Supply: AC 380 V, 50 Hz
- Power Consumption: 380 W
- Operating Temperature: 0–40°C
- Operating Humidity: 10–90% RH (Non-condensing)
- Weight: Approx. 660 kg
- Overall Dimensions: 1650 (L) × 2630 (W) × 990 (H) mm
- Communication Interface: RS232
